CBK BS-105 Truck Large Vehicles Touchless Robot Car Wash Machine

Short Description:

BS-105
The ultra-high cleaning height can meet the cleaning requirements of large vehicles of any size, with rich foam and strong air drying
1.”High pressure washing
(top moving body with intelligent lifting, which can setup 2 kinds of height)”
2.Wax coating
3.6 Built-in air dryers
4.Touchless foam and water wax

1.Automatic proportioning system (pre-soak/foam/wax)
2.Program customization
3.Stainless steel body + electrostatic spraying
4.Anti-rust pipe (304+ high-pressure pipe)
5.Water pipe and electric pipe separately isolated
6.Foam Energy -saving system
7.Pipes auto-cleaning system
8.Three-dimension testing
9.Intelligent anti-collision system
10.Leakage protection system
11.Auto Diagnostic system
12.Operating authority system

Send email to us

Product Detail

Product Tags

Product Introduction

Model No.: BS-105

Introduction:

BS-105 is a fully automatic non-contact car washing machine with the most complete functions.360 degree cleaning of a car takes 10-12 minutes, you can choose the car washing process on the computer controller.Automatic non-contact car washing machine without manual, do not damage the car paint, can operate 24 hours a day, greatly improving the efficiency of car washing

Application Scenario of Car Washing Machine

This fully automatic touchless car wash system saves time and offers greater convenience.

Multi-Angle Pre-soak Spraying: The horizontal arm moves vertically to precisely spray the front, top, and rear of the vehicle, while side nozzles evenly cover both sides, ensuring complete pre-soak application.

Foam: The car is fully coated with foam, accelerating the breakdown of dirt and grime, increasing cleaning efficiency.

High-Pressure Rinse: The horizontal arm sprays high-pressure water at close range to quickly rinse away grime from the roof, while side nozzles blast dirt from the sides of the vehicle.

Wax Coating: A layer of water-based wax is evenly applied, providing protection against acid rain and pollutants, extending the life of the vehicle's paint.

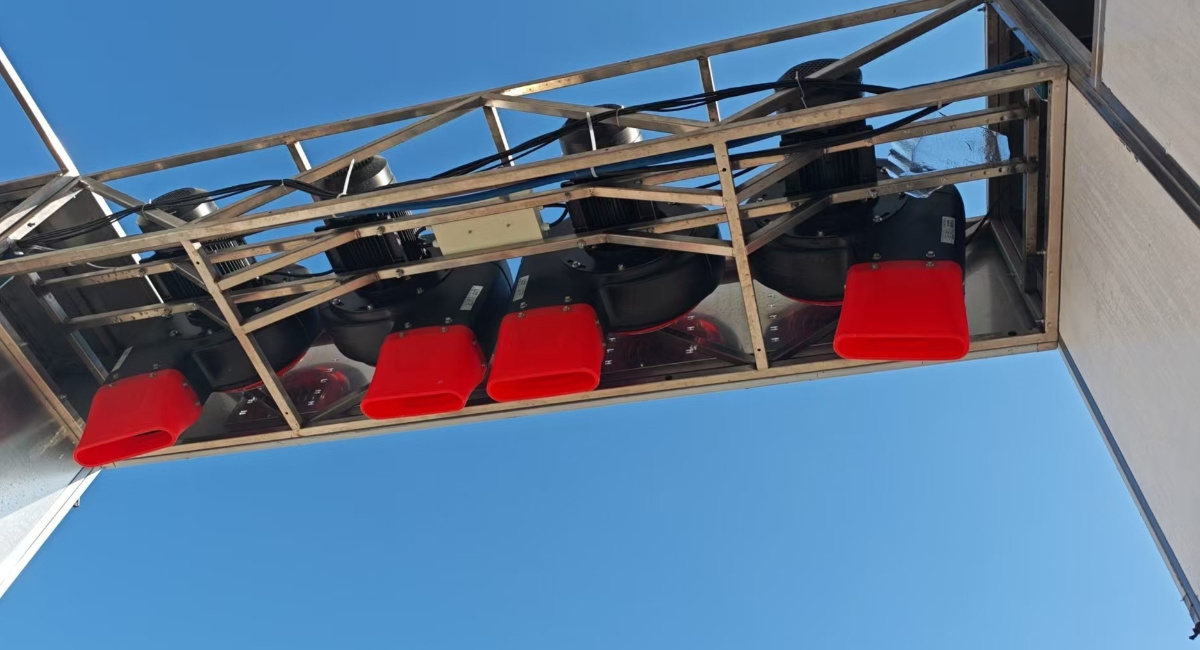

Powerful Air Drying: Six high-powered blowers work simultaneously to ensure the vehicle is dried quickly and thoroughly, delivering superior drying performance.

With 360° full-coverage cleaning, it delivers a deeper and more thorough clean.

Before: A car covered in dirt, grime, and road stains.

After: Gleaming, spotless, and protected.

Modle	BS105

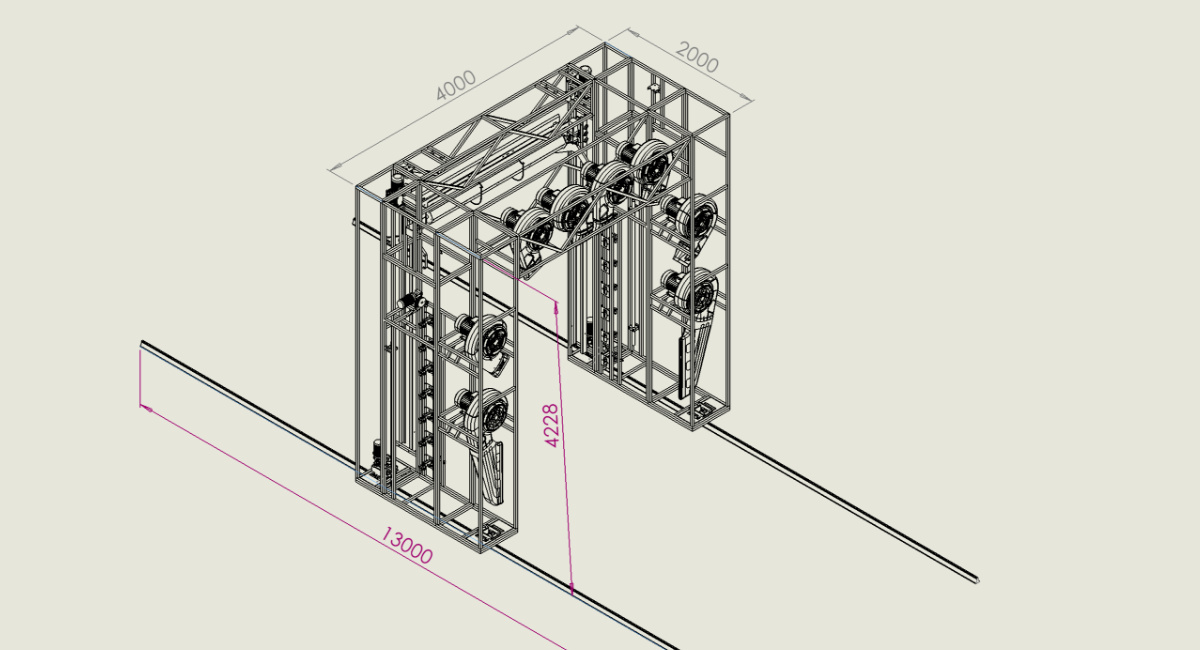

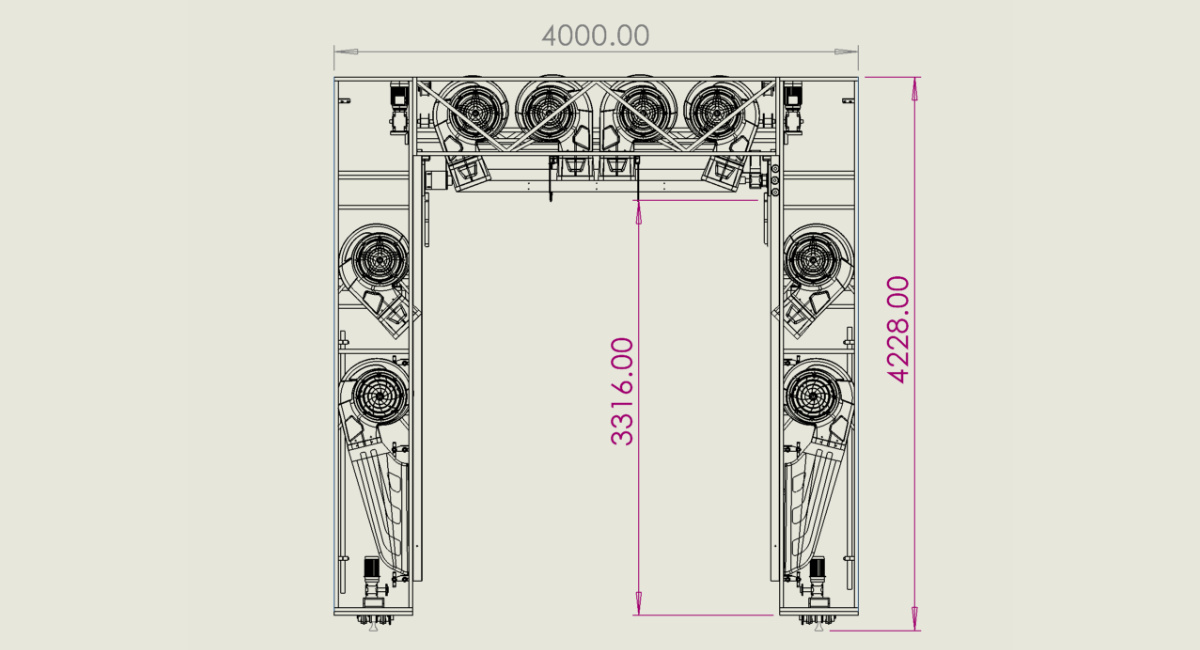

Specification	Installation Dimension	*L24.5mW6.42mH5.2m* Keep the necessary inspection access on both sides
	Washing Truck Dimension	No more than *L16.5mW2.7mH4.2m*
	Working Voltage	Standard: 3Phase-4Wires-AC380V-50Hz Or Customized
	Water	Pipe Diameter DN25 ; Flow: N120L/min
	Other	Site leveling error not exceeding 10mm
	Washing Method	Gantry Reciprocating
	Accept Truck Type	Truck, Trailer, Bus, Container etc
	Capacity	Estimate 10-15 sets/hour

Brand & Process	Pump	Genmany TBTWASH
	Motor	Yineng
	PLC Controller	Siemens
	PLC Screen	Kinco
	Electricity Brand	Schneider
	Lifting Motor	Itlay SITI
	Frame	Hot Dip Galvanized
	Main Machine	SS304 + Painting
Power	Total Power	30kw
	Max Working Power	30kw
	Air Requirement	7BAR
	Water Requirement	4Ton Water Tank
